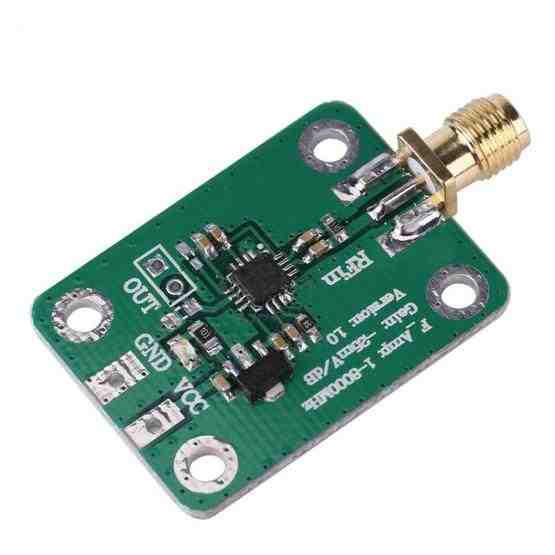

AD8318 RF Logarithmic Detector 1-8000MHz Dynamometer 70dB RSSI Measurement Power Meter
Item TBD01863798
Warehouse: CN
Lead time: Item will be ready for ship between 02 May and 04 May 2025
Description
1. Working frequency: 1-8000MHz
2. Dynamic range: -65dBm to + 5dBm
3. Detection slope: -25 mV / dB (typical value)
4. Detection output voltage range: 0.5--2.1V
5. Power supply voltage: 7--15VDC (including power supply voltage regulator circuit)
6. Input impedance: 50 ohm
7. RF interface: standard SMA female
