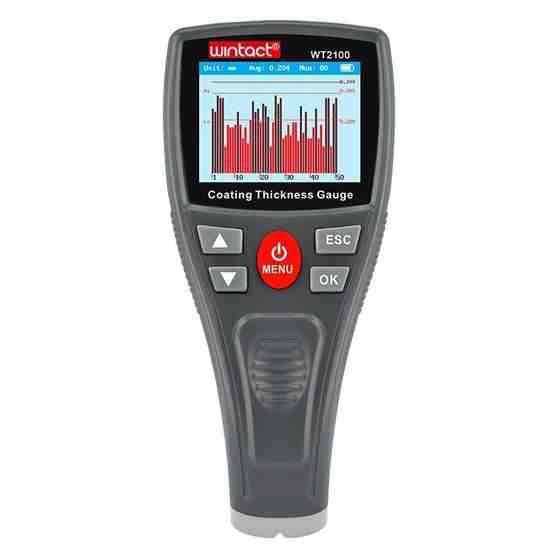

Wintact WT2100 Color Screen Display Coating Thickness Gauge

Description

1. Quickly measure the thickness of paint coating, with a wider measuring range: 0-1800um/0-70.9mil/0-1.8mm, menu operation.
2. Measurement of the thickness of the non-magnetic coating on the surface of the magnetic metal substrate. The symbol of the magnetic substrate is Fe.
3. Automatic power-off measurement, metric/imperial um/mil/mm unit can be switched.
4. Two measurement methods: single measurement and continuous measurement. Three calibration modes: basic, offset, and zero calibration.
5. With charging protection, multi-interface display and screen brightness selection.
6. 360-degree screen rotation can easily read data, and the V-shaped groove on the probe can be used for small cylindrical parts.
7. Large color high-definition LCD display, which can store 15 data and bright backlight, make it easy for you to read the results clearly.
8. Portable streamlined design, special hand-held non-slip treatment, light weight, small size, suitable for the palm of the hand.
9. It is widely used in the fields of manufacturing, metal processing, chemical industry, and commodity inspection, and can work stably in laboratories, workshops and outdoors.
10. It can quickly, non-destructively and accurately measure the thickness of non-magnetic coatings (such as paint, electroplating, film, etc.) on magnetic metal substrates
11. Material: ABS plastic
12. Unit: micron, mil, millimeter
13. Lower limit diameter of magnetic metal substrate: 12mm
14. Lower limit thickness of magnetic metal substrate: 0.5mm
15. The lower radius of curvature of the magnetic convex substrate: 2mm
16. The lower radius of curvature of the magnetic concave substrate: 11mm
17. Size: 70x35x150mm
18. Item weight: 100g
