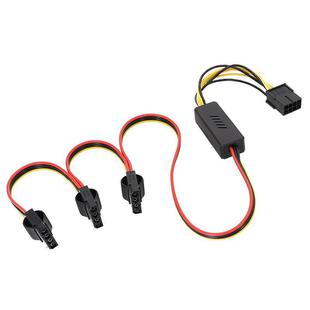

Power Supply SATA + Motherboard 4 Pin to Fan 4 Pin Interface One-to-four Computer Fan Speed Measurement and PWM Extension Cable, Cable Length: 43cm
Item PC1782
Warehouse: CN
Lead time: Item will be ready for ship between 29 Jul and 31 Jul 2024
Description
1. Product length: 43cm
2. Wire model: 1007 24AWG
3. Insulation material: PVC insulation
4. Conductor specification: 11x0.12TS
5. Conductor material: tinned copper
6. Wire outer diameter: OD1.4mm
7. Rated temperature: 80 degrees Celsius
8. Product voltage: 12V
9. Product weight: 40g
10. Product interface: one end of the power supply SATA connector + motherboard 4Pin connector, the other four ends are fan 4 Pin interface
11. Product function: the four computer fans are powered by the SATA interface, which can reduce the load of the motherboard, increase the service life of the motherboard, and ensure the speed control function
12. Note: The motherboard can only provide an accurate speed measurement value for one fan, so among the four fans, only one four-wire has a speed measurement function, but all four fans have a PWM temperature control function.
