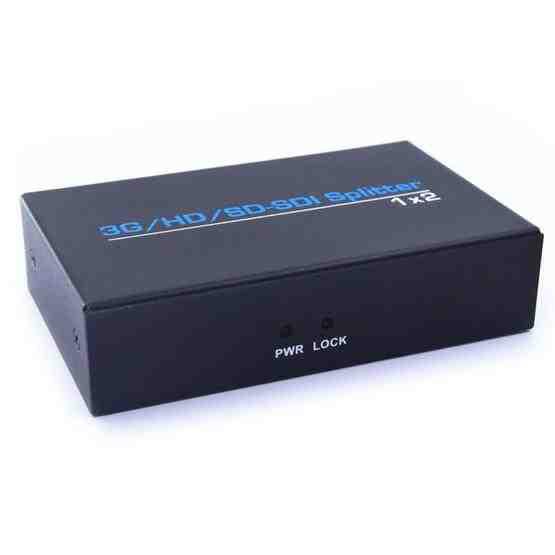

NK-812 2 in 1 3G-SDI / HD-SDI / SD-SDI Splitter

Description

Features
Introduction
1 x 2 SDI splitter distributes allows 1 SDI, HD-SDI or 3G-SDI video source to 2 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.

Features
1. 1 SDI input signal split to 2 SDI sink devices.
2. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
3. Built-in cable equilibrium, clock recovery and drive.
4. Support resolutions up to 1920x1080@60Hz.
5. Support signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.
6. Support 5V wide voltage input.

Specification

Model

HDV-S12

Types

Splitter

Package Contents

1 x User Manual, 1 x Power Supply, 1 x SDI Splitter

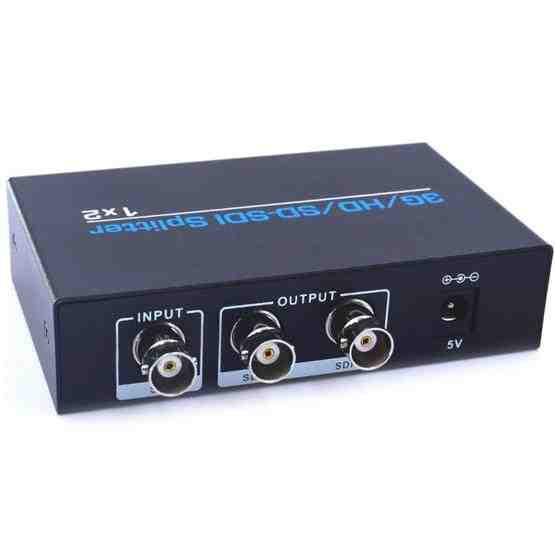

Input Port

1 x BNC Female input port

Output Port

2 x BNC Female output ports

SDI Transmission Rates

SD-SDI (270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI (2.97Gb/s)

Power Supply

DC 5.0V / 1.0A

Frequency Bandwidth

3.0Gbps

Operating Temperature

0 ~ 40 Degree Celsius

Storage Temperature

-20 ~ 60 Degree Celsius

Operating Humidity

20 ~ 90 Percent RH (Non-condensing)

Power Consumption

1.5W

ESD Protection Human Body Model

+-8kV (air-gap discharge), +-4kV (contact discharge)

Size

70*145*25mm

Weight

320g
