Original DJI Video Transmitter 20,000ft 1080p/60fps Transmission

Description

1. Long-Distance HD Live Feed:Incorporates O3 Pro video transmission technology that offers an incredible 20,000ft transmission distance at 1080p/60fps.
2. Unlimited Number of Receivers:Broadcast mode allows an unlimited number of receivers, convenient for real-time monitoring by multiple teams for enhanced efficiency.
3. Triple-Band Seamless Auto Hopping:Supports triple-band automatic frequency hopping between 2.4 GHz, 5.8 GHz, and DFS for optimal wireless channel use.
4. End-to-End Ultra-Low Latency：Use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency.
5. Remote Gimbal/Focus/Camera Control:When used with Ronin 4D Hand Grips or DJI Master Wheels, you can remotely control Ronin 2, RS 3 Pro, focus, and camera functions.
6. Independent Recording and Playback:1080p/60fps H.264 footage can be independently recorded and stored on a microSD card, making it easy to edit samples right on set.

Specification:
1. Weight: Image transmission transmitter is about 350 grams (excluding antenna)
2. Dimensions: 127 mm long, 87 mm wide, 26 mm high (excluding antenna)
3. Power consumption: 11W
4. Power supply voltage: 6-18V
5. Input audio format: SDI embedded, HD-MI embedded
6. Output audio format: PCM
7. Image transmission solution: O3 Pro
8. Image transmission delay: 70 milliseconds (measured under 1080p/60fps recording specifications.)

Packing list:
DJI video transmitter × 1
WB37 battery adapter board (TX) × 1
NP-F battery adapter board × 1
Ronin image transmission antenna × 2
USB-C cable (40 cm) × 1
SDI cable × 1
DC power cord × 1
DC to P-TAP power supply cable × 1
USB-C image transmission cable × 1

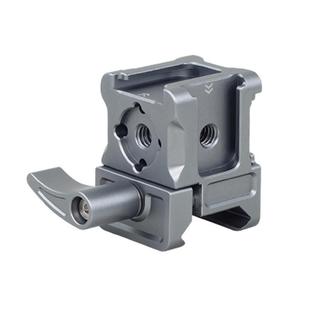

RS pan/tilt mounting plate × 1
Installation tool kit × 1
