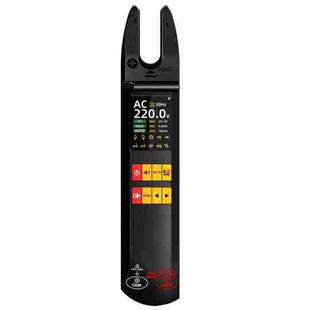

BSIDE U1 AC / DC Clamp Meter Electric Pen Current Digital Multimeter

Description

1. Three-in-one function, electric pen + ammeter + multimeter, strong practicality.
2. Beautiful, portable, high precision, fast testing, more reliable.
3. Color LCD display, LED flashlight design, enhanced reading experience.
4. With full-range overload protection, automatic measurement at power on, and intelligent burn prevention.
5. Automatic mode: can automatically identify AC voltage, DC voltage, resistance, and on/off.

Parameters:
1. DC voltage: 0-610V
2. AC voltage: 0-610V
3. DC current: 1-100A
4. AC current: 1-100A
5. Resistance: 1 ohm-60 megohms
6. Capacitance: 0.01uF-60mF
7. Frequency: 1.000Hz-9.999MHz
8. Duty cycle: 10%-95%
9. Temperature: -50 degrees Celsius to 1000 degrees Celsius
10. Display: LCD screen
11. Maximum display value: 6000 digits
12. Sampling rate: about 3 times/second
13. Automatic shutdown time: 15 minutes
14. Power supply: built-in 3.7V 400mAh lithium battery
15. Working altitude: maximum 2000m
16. Dimensions: 192 x 36 x 30mm
17. Weight: 102g
