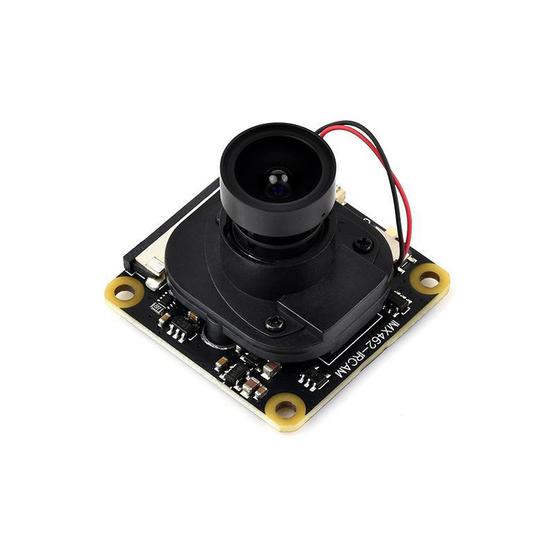

Waveshare For Raspberry Pi Series Boards IMX462 2MP Fixed-Focus IR-CUT Starlight Camera(30450)
Item TBD0605910701A
Warehouse: CN
Lead time: Item will be ready for ship between 27 May and 28 May 2025
Description
Features:
1. Starlight sensor, clear imaging in low-light environment
2. Built-in R-CUT function, onboard switch and GPIO pad, 3. Support switch switching or GPI1O software control R-CUT switch
4. Use with infrared fill light to support night vision imaging
5. Can be directly connected to Raspberry Pi 5/4B/3B+/3A+/3B/2B/B+/A+ multiple versions, can be connected to Raspberry Pi Zero series or Zero 2 W series
Product parameters:
1. Photosensitive chip: IMX462
2. CMOS size: 1/2.8 inch
3. Pixels: 2 million (1920 x 1080)
4. Aperture: F2.0
5. Focal length: 3.95mm
6. Diagonal field of view: 90 degrees
7. Camera type: color
8. Focus mode: fixed focus
9. Distortion: less than 5%
10. Shutter mode: rolling shutter
11. Product size: about 32 x 32 x 24.75mm
12. Weight: about 12g
13. This product is measured manually, and there may be an error of 0.1-0.2mm and 0.1-0.2g in length and weight; there may be a slight color difference due to display and light problems. Please refer to the actual product!
