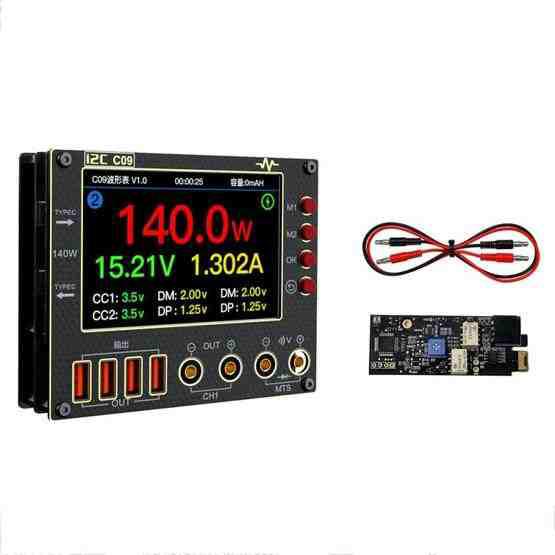

i2C C09 Charge Detection / Voltage Measurement Digital Waveform Ammeter, Model:With Expansion Board

Description

1. Input voltage DC: 0~40V
2. Device power supply: 5V / 2A
3. Diode test: 0~2.8V
4. Effective resistance: 0~50K
5. Voltage measurement: 0~24V
6. Two-channel voltage measurement: 0~40V
7. Detection current: 0~8A
8. Protection voltage: <60V
9. Protection current: <15A
10. Banana plug output voltage and current: 40V/8A
11. USB output voltage and current: 20V/2A
12. Voltage resolution: 1mV
13. Current resolution: 0.1mA
14. Current accuracy: 100 ampere
15. Screen size: 4.0-inch
16. Screen resolution: 320 x 480
17. Product size: 11.4 x 9.3 x 2.9cm
18. 0~40V Dual-channel voltage and current testing
19. 4.0-inch IPS high-definition high-brightness display
20. Three display modes: pointer, curve, and digital
21. Millisecond-level instantaneous dynamic voltage measurement
22. Ultra-high-speed diode scanning measurement
23. 140W full-protocol charging power testing
24. 0-24V positive/negative voltage measurement function
