Original DJI Power 1.8kW Solar/Car Super Fast Charger

Description

1. Convenient RV Energy Storage, Charge While Driving:
The DJI Power 1.8kW Solar/Car Super Fast Charger supports simultaneous connection to solar panels and the RV's alternator, together providing up to 1200 W of solar power and 600 W of continuous car power to quickly recharge a Power 1000 and expansion battery, reaching 1024 Wh of power during a drive of approximately 40 minutes, expanding the capacity of your car's electrical system. It can also connect to the RV battery and reverse-charge it with Power 1000 to prevent battery drain, achieving intelligent two-way charging and capacity expansion of the car battery. Additionally, the Power 1000 can be paired with the 2048Wh expansion battery to provide 3072 Wh of battery backup and an ultra-high power output of 2400 to 2600 W.
2. Solar Power for Eco-Friendly Home Backup Battery:
The 1.8 kW Super Fast Charger can connect to solar panels via the XT90 port, to provide a max 1800W solar power to quickly recharge a Power 1000 and an expansion battery, enabling a more eco-friendly and economical home energy storage and usage solution. The Power 1000 can be paired with up to five 2048Wh DJI Power Expansion Battery 2000 units, providing up to 11264 Wh of backup power. Using the Super Fast Charger and solar panels to fully recharge them ensures you have power even during unexpected outages.
3. Compatibility: DJI Power 2000 / DJI Power 1000

Technical parameters:
Weight: Approx. 1.2 kg
Dimensions: 260×126×63 mm (L×W×H)

Ports/cables:
SDC Port × 1
Car/Solar Charging Port × 1
MC4 Solar Panel Cable × 1

Input:
Input:
MC4 Solar Panel Cable (Input):
Rated: 12-60 V, max current: 20 A, max power: 1200 W
XT90 Car/Solar Charging Port (Input):
Rated: 12-45 V, max current: 43 A, max power: 600 W
SDC Port (Output): 40-58.4 V

Output (Power Supply with Solar Power)
SDC Port (Input): 40-58.4 V
Output (Power Supply with Car Power):
SDC Port (Input): 40-58.4 V
XT90 Car/Solar Charging Port (Output):
12V Car System: 11-14.4 V, 600W max power
24V Car System: 22-28.8 V, 600W max power

Charging environment temperature: 0- 45 degrees Celsius
Power supply environment temperature: -10- 45 degrees Celsius

Warm Tips:
1. The 1.8kW Solar/Car Super Fast Charger is suitable for 12V or 24V car systems. The input voltage of the car charging terminals must not exceed 45 V.
2. After installation in the car, organize and secure the wiring, and ensure all terminal screws are fixed, before driving the vehicle.
3. The 1.8kW Solar/Car Super Fast Charger is not water- or dust-resistant. Take precautions against water and dust during installation.
4. The maximum input voltage for the MC4 Solar Panel Cable is 60 V, and the maximum power is 1200 W.
5. When connecting the Car/Solar Charging Port to solar panels, the maximum input voltage is 45 V, and the maximum power is 600 W. Pay attention to the series and parallel configuration of the solar panels to avoid exceeding port limits.
6. When using with the DJI Power 1000, achieving the 1800W max recharging power requires connecting the power station to a DJI Power Expansion Battery 2000.

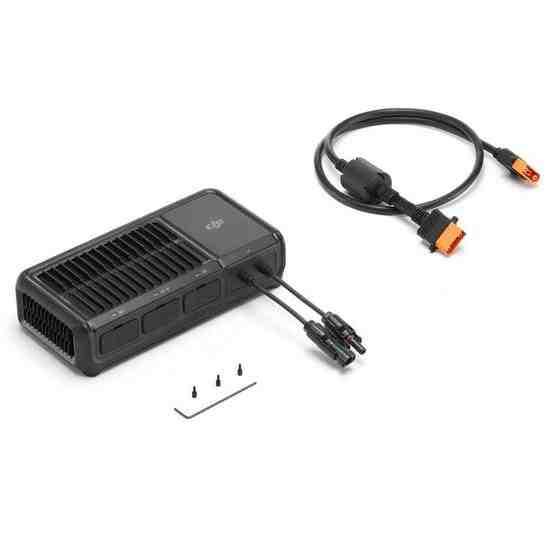

Packing list:
DJI Power 1.8kW Solar/Car Super Fast Charger × 1
DJI Power SDC to SDC Adapter Cable (30A) × 1
M2.5 Hex Socket Screw × 3
M2.5 Hex Key × 1
