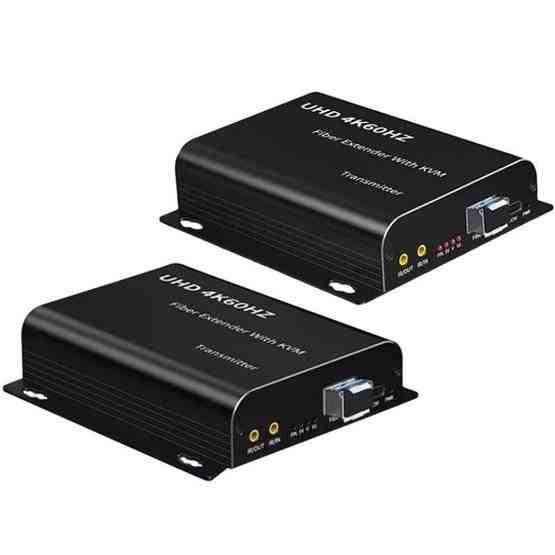

D15 / D16 Dual Fiber LC Interface KVM Fiber Optic Extender HDMI Fiber Optic Extender, Plug:EU Plug

Description

1.Long-Range Transmission:Extend HDMI video and audio signals up to 20km over LC single-mode/multi-mode fiber optic cables, ideal for large-scale installations.
2.High Resolution Support:Delivers crystal-clear 4K@60Hz and 1080p@120Hz video, ensuring superior image quality for demanding applications.
3.KVM Functionality:Supports remote USB KVM control, allowing seamless operation of connected devices from a distance.
4.HDMI Loop Output:Transmitter unit includes HDMI loop output for local monitoring or cascading setups.
5.Lossless Transmission:Uncompressed signal transmission ensures zero loss and delay in audio and video quality.
6.Versatile Applications:Perfect for large homes, factories, construction sites, and data control centers requiring high-quality, long-distance HDMI extension.

Specifications:
1.Video Standard: HDMI 2.0b, HDCP 2.2 compliant
2.Maximum Pixel Clock: 600MHz
3.Maximum Data Rate: 18Gbps
4.Resolutions: Up to 3840x2160p@60Hz, 1080p@120Hz
5.Audio Formats: Dolby-True HD, LPCM7.1, DTS, DSD
6.Fiber Type: Single-mode/Multi-mode LC connector
7.Transmission Distance: Up to 20km (single-mode)
8.Wavelength: 1310nm, 1510nm
9.Power Supply: DC 5V/2A
10.Power Consumption: Max 3W
11.Operating Temperature: -5 to +70 degree centigrade
12.Humidity: Five to 90 percent
13.Material: Aluminum alloy
14.Dimensions: 104 x 98 x 23mm
