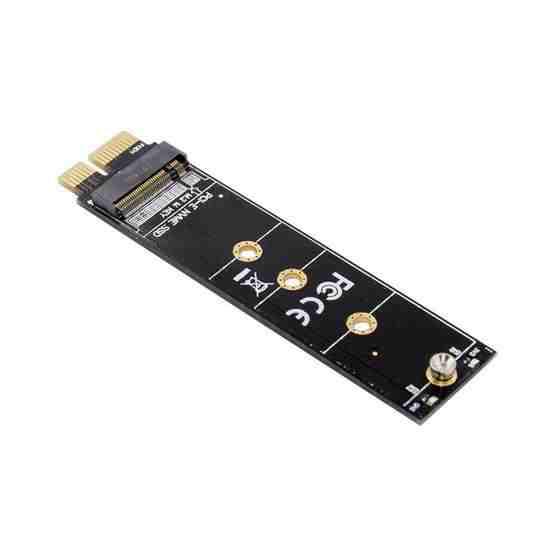

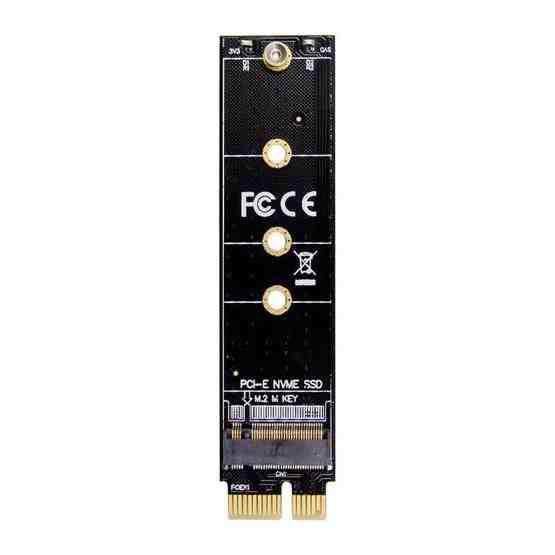

SUNWEIT ST522 PCIe x1 Single Port M.2 NVMe SSD Memory Conversion

Description

1. Allows users to use standard M.2 SSD to PCIe x1/x4/x8/x16 slot of desktop, but the speed is only 1x
2. Support 2230/2242/2260/2280 type M.2 card size
3. Only supports M.2 Key M SSD based on PCIe x1 slot, does not support M.2 SATA bus B key SSD
4. M.2 NVME to PCIe card
5. PCIE interface, supports PCI Express rev3.0 1X signal
6. Work in PC desktop office or Game Player
7. Small size, easy to install (multiple PCIe interfaces on the motherboard can test multiple SSDs at the same time)
8. Bus type: PCI Express x1 Rev3.0
9. Media interface: 1 x M.2 Key M NVMe SSD connector
10. M.2 type: 2230, 2242, 2260, 2280

Packing list:
- Adapter card x 1
- Screws + nuts x 2
- Screwdriver x 1

Note:
- This product requires the motherboard BIOS to support pcie boot. If it does not support it, the computer cannot recognize the SSD
- This product does not support SATA protocol SSD, only NVMe protocol SSD
- This product is only used to test SSD. The 1X bandwidth speed cannot reach M.2 4X full speed. If you need to install and boot, please consider carefully
