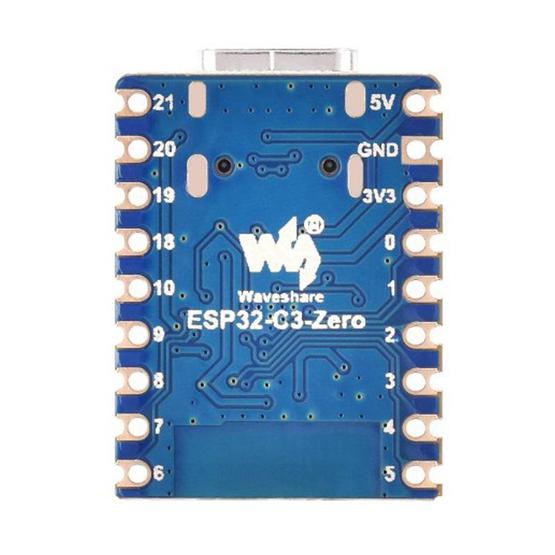

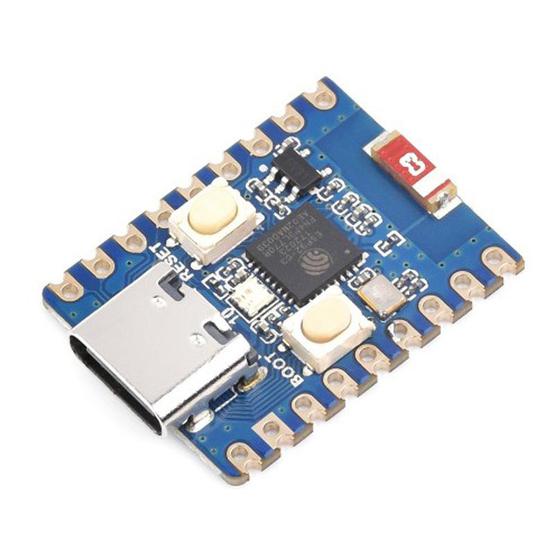

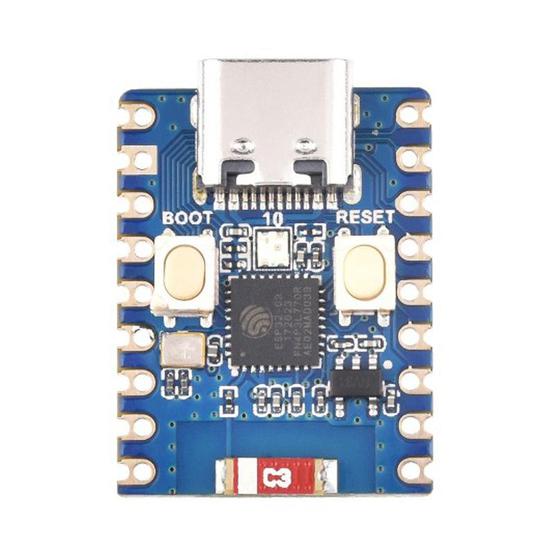

Waveshare 2.4GHz ESP32-C3 Mini Development Board, Based ESP32-C3FN4 Single-core Processor without Header
Item TBD0583129701
Warehouse: CN
Lead time: Item will be ready for ship between 08 Jun and 10 Jun 2025
Description
1. Low-power SoC equipped with RISC-V 32-bit single-core processor, clocked at up to 160MHz
2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
3. 400KB SRAM and 384KB ROM, and 4MB onboard flash memory
4. Castle-shaped module and on-board ceramic antenna, allowing direct soldering to the carrier board
5. Support flexible clock and module power independent settings and other controls to achieve low power consumption in different scenarios
6. Integrated USB serial port full-speed controller, 15×GPIO pins, pin functions can be flexibly configured
7. 3×SPI, 1×I2C, 2×UART, 1×I2S, 2×ADC, etc.
8. Product size: 23.5 x 18mm
9. Weight: 2g, 3g
