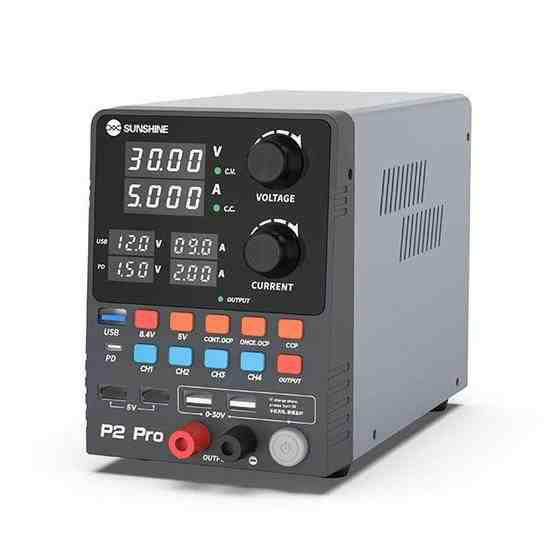

SUNSHINE P2 Pro SUNSHINE P2 Pro 330W Intelligent DC Voltage Regulator Power Supply Toroidal Transformer 30V 5A Output Repair Tool

Description

1. Rated voltage range: 110V-127V, 60Hz/220V-240V, 50Hz
2. Rated power: 330W
3. Operating temperature: -10°C-40°C/14°F-104°F
4. Operating relative humidity: less than 90%
5. Output voltage: DC 0-30V
6. Output power: 150W
7. Voltage accuracy: less than 0.1%+0.03V
8. Current accuracy: less than 0.3% +3mA
9. Load stability: less than 0.6%+10mA
10. Ripple: Vrms less than 0.5% (10Hz-1MHz)
11. Output current: 0-5A
12. Net weight: about 3.45kg
13. Size: about 24 x 12.3 x 17.4cm
14. Packing list: main unit x 1/power cord x 1/10A fish clip cable x 1/manual x 1

Functional features:
1. 330W intelligent regulated power meter, 65W fast charging output, 65W fast charging Type-C/40W fast charging USB interface, compatible with a variety of device protocols
2. 30V-5A high-frequency output, adjustable DC regulated power supply, provide efficient and reliable power solutions for your electronic devices
3. Four-digit digital display, multi-screen display, current and voltage, charging output independent high-definition display, accurate values
4. Sufficient power, using high-quality copper wire craftsmanship, the overall layout is clean, built-in 265W toroidal voltage regulator transformer
5. Four groups of storage corresponds to the channel, can be adjusted to store data, a second to read, three seconds to store, so that you are more convenient to select
6. One key to limit the conversion of high and low voltage, (5/8.4V) limit conversion, 8.4V for laptop computer maintenance
7. One key to switch a variety of modes, with a constant current output, overcurrent stop output, overcurrent protection recovery mode, according to the use of scenarios to choose the right model
8. Double-sided weldable highly integrated chip circuit board, stability is greatly enhanced, low noise and low ripple, intelligent system fan cooling
