YAHBOOM DOGZILLA-Lite AI-Powered Bionic Robotic Dog 15-DOF Desktop Companion With Robotic Arm, Raspberry Pi Controlled, Multimodal AI & Visual Interaction

Description

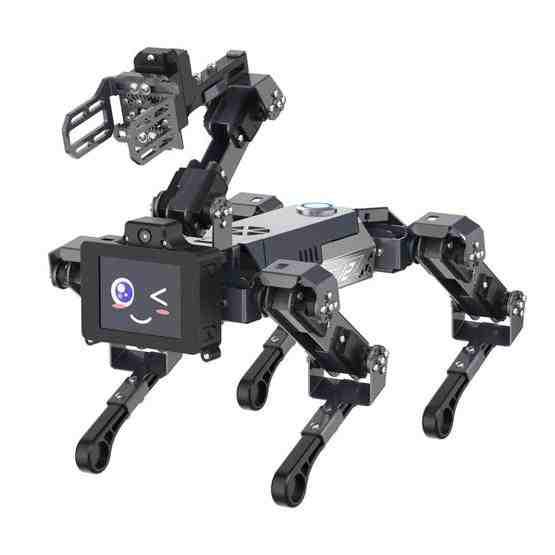

1. DOGZILLA-Lite is a 15-DOF desktop AI bionic robot dog. It is made of aluminum alloy and comes with a robotic arm and gripper, which can flexibly perform grasping tasks. Built-in Raspberry Pi CM4 module, supports face detection, object recognition, and AI visual interaction. Combined with a large model, it can not only understand instructions, but also realize free dialogue, realizing true multimodal intelligent interaction. It has advanced sports capabilities such as omnidirectional movement, six-dimensional posture control, and dynamic balance. With more than 40+ functions, from basic remote control to embodied intelligent applications, it allows learning, entertainment, and technology research to be fully upgraded. In front of the robot dog, a 2.0-inch IPS display is integrated to display 35 different expressions.Support two control methods: BT APP and WiFi APP. Whether it is programming learning, AI experiments, or creative interaction, DOGZILLA-Lite is your best partner.
2. 15-DOF bionic design: 12DOF 4-legged + 3DOF robotic arm, flexible grasping, precise control.
3. Flexible and stable posture: 15 high-precision 2.3KG·CM bus servos, integrated 6-axis IMU attitude sensors, combined with advanced inverse kinematics algorithms, accurately simulate the motion trajectory of biological joints.
4. AI vision + large model interaction: Raspberry Pi CM4 + large model, supports AI visual recognition, object detection, and intelligent dialogue.
5. 40+ functions: DOGZILLA-Lite pre-installed with a GUI program, users can experience it directly and quickly after getting it.
6. Dual APP control: BT APP controls the movement and robotic arm, WiFi APP real-time image transmission, experience FPV control.
7. 2.0-inch IPS expression screen: Can not only display the interface of large model interaction in real time, but also integrates 35 dynamic expressions.

Parameters:
1. Architecture: Upper computer: Raspberry Pi CM4 module; Lower computer: ESP32
2. Material: The body is made of 1mm aviation aluminum alloy, and the foot end is made of ABS
3. Battery: 7.4V 2500mAh lithium battery
4. Servo model: Bus serial servo x15 Servo torque 2.3KG·CM
5. Gripping range of the gripper: 14.4-53.6mm
6. Screen: 320×240 pixel full color IPS
7. Camera: 5 million pixels OV5647
8. Speaker: 8Ω 2W cavity speaker
9. Microphone: Dual MEMS digital microphone
10. Storage: 32GB TF card
11. Charging port: Type-C 5V
12. Charging time: 2.5 hours
13. Endurance time: 3 hours
14. Weight: about 575g
