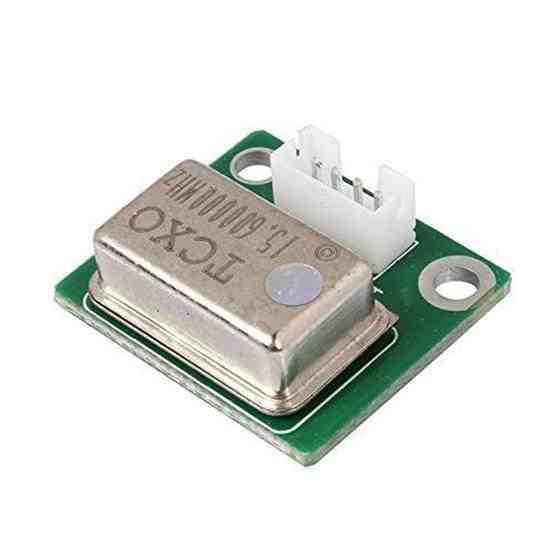

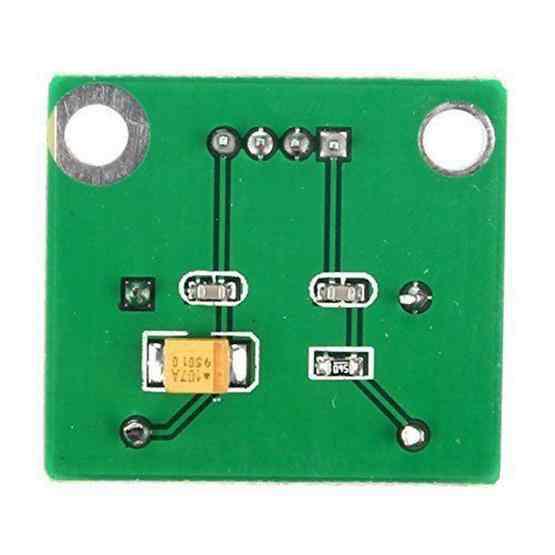

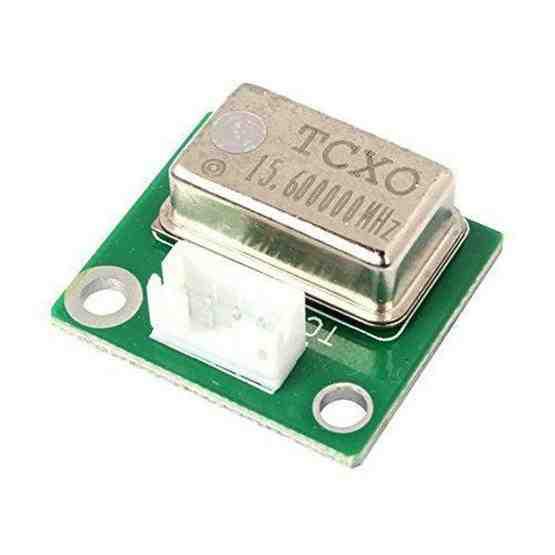

TS-590S 15.6MHz High Stability Crystal OSC Module for SO-3 TCXO
Item EDA0081160
Warehouse: CN
Lead time: Item will be ready for ship between 21 Jun and 22 Jun 2025
Description
1. TS-590 model applicable compensated crystal components, a direct replacement for the original machine Warming small plates, the original installation location, you only need to plug the original machine screws to complete the installation of the plug, very convenient.
2. Frequency is 15.6MHz, the replacement of the original machine crystals can improve machine stability, in a different environment than the original module with outstanding performance.
3. The actual test frequency observed with precision frequency meter crystal, crystal original machine flew with fire frequency offset what happened, and this compensated crystal did not change significantly, the effect is significant.
4. This crystal accuracy can be achieved 0.5PPM, consistent with the original SO-3 module parameters.
5. Compatible SO-3 TCXO
