TASI TA522A Car Paint Film Meter Paint Surface Tester Coating Thickness Gauge(Black)

Description

1. Measuring principle: Fe: magnetic induction / NFe: eddy current effect
2. Measuring range: 0~2000um/0~2mm/0~78mil
3. Accuracy: +/- (3%+1um) / +/- (3%+0.001mm) / +/- (0.117%+0.039mil)
4. Resolution: Less than 100um (0.1um), ≥100um (1um); Greater than or equal to 2m (0.001mm); Less than 10mil (0.001mil); 10~78mil (0.01mil)
5. Calibration: zero point calibration
6. Unit: um, mm, mil
7. Iron powder putty range: 0~1000um
8. Iron galvanized range: 3~500um
9. Minimum radius of curvature of substrate: convex surface 5mm; concave surface 25mm
10. Minimum measurement area: 15mm diameter
11. Minimum substrate thickness: Fe: 0.30mm; NFe: 0.05mm
12. Maximum measurement speed: 2 times/second

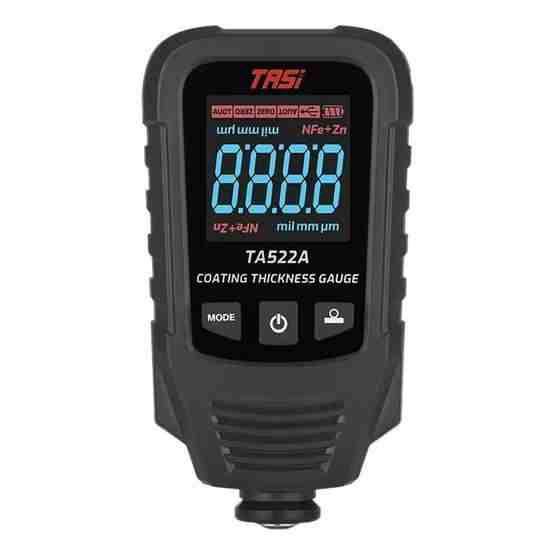

13. Display: four-digit display, maximum 8888, 180-degree rotation (automatic)
14. Operating environment: -10~50 degrees Celsius, maximum 90% relative humidity, indoor altitude less than 2000m
15. Storage environment: -20~60 degrees Celsius, maximum 70% relative humidity (remove batteries)

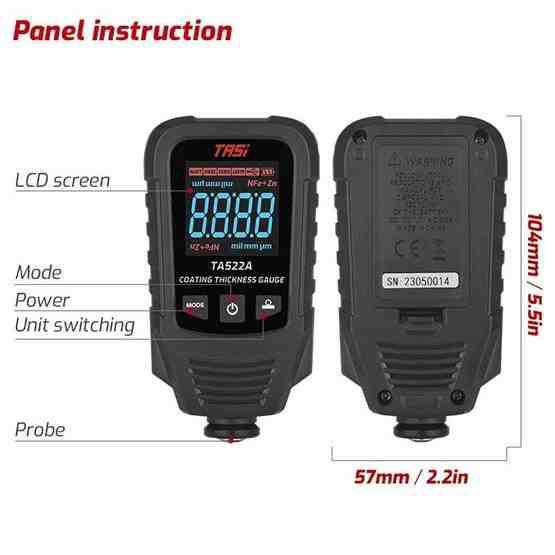

16. Product size: 104 x 57 x 26mm
17. Weight: about 70g (without batteries)
18. Power supply: 2 x 1.5V AAA

Features:
1. Ruby probe is used to automatically identify the substrate. The probe mode can select automatic mode, iron-based mode and non-iron-based mode
2. High-definition color display, 180-degree rotation, with background light
3. Automatically shuts down after 50 seconds without any operation
4. Small and portable, does not take up storage space, easy to carry
