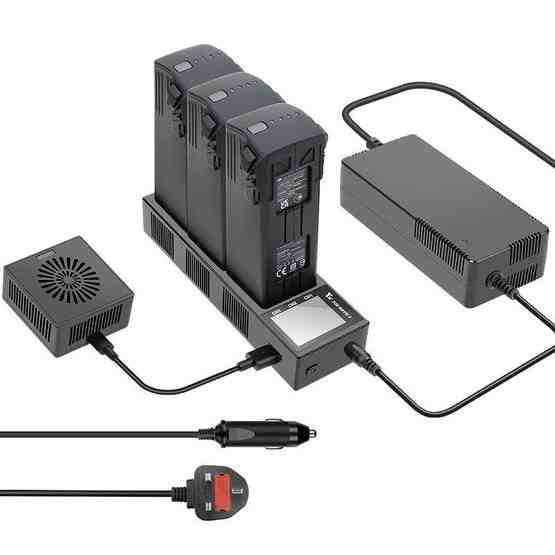

For DJI Mavic 3 YX Battery Charger Discharger Hub 3-in-1 Smart Charging Station With Color Screen UK Plug

Description

1. Suitable for the DJI Mavic 3 battery charger, supporting simultaneous charging of 3 batteries, and featuring discharge and storage modes.
2. Dual input mode: The input supports AC 100- 240V and DC 11- 14V.
3. Three working modes:
1) Charging mode: Can charge 1-3 batteries and one USB device simultaneously. Charging 2 batteries simultaneously takes approximately 100 minutes, and charging 3 batteries simultaneously takes approximately 150 minutes.
2) Storage charging mode: Automatically stops working when the battery reaches 60-65% through charging or discharging. In this mode, batteries with higher charge levels discharge while those with lower charge levels charge.
3) Discharge mode: Connect a discharger to discharge the battery to 5-80%. The default discharge cut-off level is 15%, and the discharge cut-off level can be set within the discharge range.
4. Controlled by an intelligent chip for stable charging without damaging the battery.
5. No need to place the battery on the drone. Check the battery level anytime, anywhere. When the battery is inserted into the charger, the battery level will be displayed for 5 seconds.

Product Parameters:
1. Input: 11-14V/10A (Max)
2. Output: 17.6V/2.0A x 3 or 17.6V/3.0A x 2
3. USB Output: 5V/3A
4. Total Output Power: 120W (Max)
5. Discharge Power: 18W (Max)
6. Charging Environment Temperature: 0-40 degrees Celsius
7. Product Dimensions: 15.3 x 4.1 x 7cm (Power Supply) 18 x 5.5 x 3cm (Charger) 5 x 6 x 3.5cm (Discharger)

Note: The product does not contain batteries
