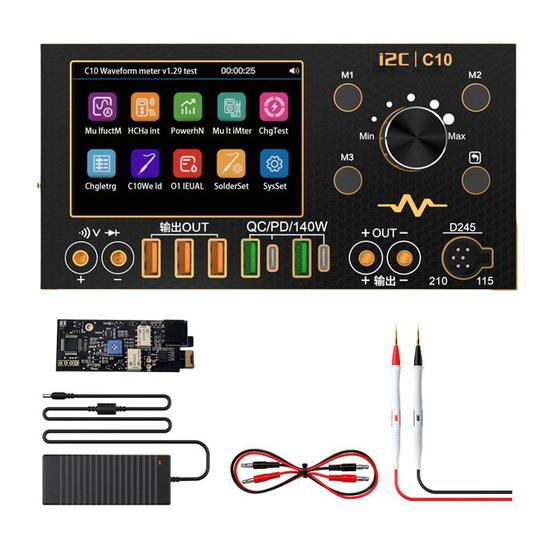

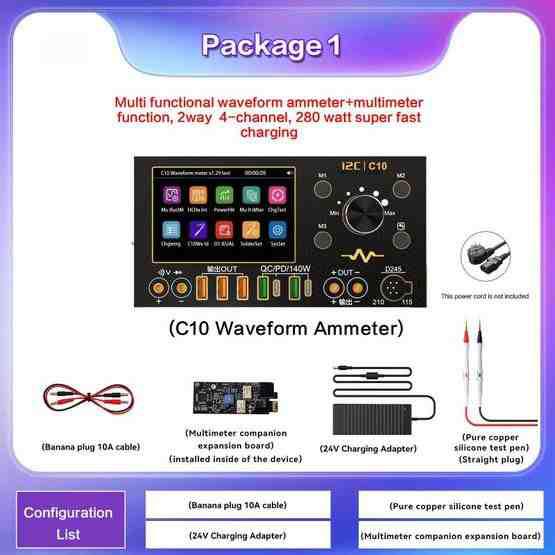

i2C C10 Ultra-high Precision Digital Waveform Ammeter with Charge Detection / Voltage Measurement, Model:Set 2

Description

Specification:
1. Soldering station input voltage: DC 24V/5-15A
2. PD3.1 Charging input voltage: DC 30V/10-15A
3. C10 soldering station output power: D245: 180W; D210: 100W; D115: 50W

DC voltage and current Measurement parameters:
1. Input voltage: 0-36V
2. Input current: 1uA-8A
3. Voltage resolution: >=0.1V
4. Current resolution: >=0.1uA

Multimeter companion measurement parameters:
1. Buzzer gear: 0 ohm resistance
2. Diode: 0.001-1999
3. DC tes: 0-24V
4. Resistance range: 0-50K

Features:
1. C10 waveform ammeter, ultra-high precision 0.1uA-8A current
2. Easy to find leakage: Accurate and reliable measurement data helps you complete your work efficiently
3. Switchable range data interface: You can choose according to your needs
4. Supports live streaming and screen projection: When live broadcasting maintenance, the data can be projected onto the screen so that fans can see it more clearly
5. Multi-protocol super fast charging: Support PD3.1/PE2.0/BC1.2/FCP/SCP/QC3.0VOOC/Super VOOC, and other charging protocols
6. Support D115/D210/D245 controllers
7. C10 soldering station features: Pick up the handle, and it will heat up in 1 second, tin in 3 seconds, and automatically sleep when you put down the handle. Support temperature curve, temperature grouping, and new UI interface
8. Note: Does not include a power plug and requires self-purchase
