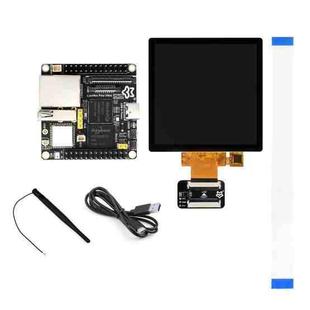

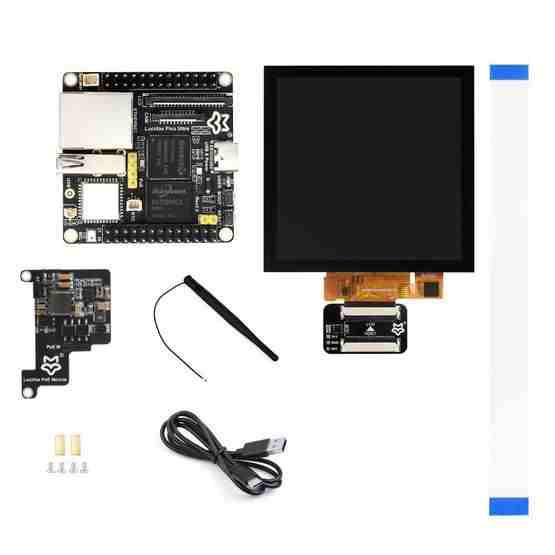

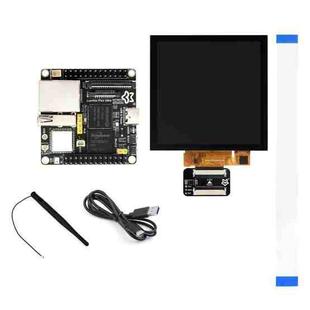

Luckfox Pico Ultra W RV1106G3 1TOPS Mini Linux Development Board Integrated Processor With Wi-Fi/PoE, Specification: 720x720 Touch Screen

Description

1. Processor: RV1106G3
2. NPU: 1TOPS
3. Memory: 256MB DDR3L
4. Based on the RV1106 series chip, it has a cost-effective Linux development board, aiming to provide developers with a simple and efficient development platform.
5. Supports multiple interfaces, including MIPI CSI, RGB LCD, GPIO, UART, SPI, I2C, USB and other interfaces, which are very suitable for embedded applications
6. Support capacitive touch with screen, which is sensitive to reaction, increases the convenience of development, and intuitive screen operation, making development more convenient
7. Single-core ARM Cortex-A7 32-bit core, integrating NEON and FPU
8. Built-in Ruxin Micro''s self-developed 4th generation NPU, high computing accuracy, supports mixed quantization of int4, int8, and int16, RV1106G3 int8 computing power is 1TOPS, RV1106G2 int8 computing power is 0.5TOPS
9. Built-in self-developed third-generation ISP3.2, supports 5 million pixels, supports HDR, WDR, multi-level noise reduction and other image enhancement and correction algorithms
10. It has powerful encoding performance, supports intelligent encoding, and saves code streams according to the scene adaptively. It saves more than 50% of the code rate than the conventional CBR mode. It can not only shoot high-definition images, but also have a smaller video volume.
11. Built-in 16-bit DRAM DDR3L to meet demanding memory bandwidth requirements
12. Reserve PoE module interface, making the power supply method of the development board more flexible
13. Connecting only one network cable to PoE device allows the Luckfox Pico Ultra series to be connected and powered

Screen parameters:
1. Communication interface: RGB666
2. Resolution: 720x720
3. Communication interface: RGB666
4. Screen size: 4 inches
5. Display panel: IPS
6. Touch type: Capacitor
7. Touch chip: GT911
8. Brightness: 400cd/m2
9. Working temperature: -20~70 degrees Celsius
10. Contrast: 1000:1
11. Viewing angle: 170 degrees
12. Appearance size: 84.0x84.0mm
13. Display size: 0.0999x0.0999 mm
14. Point spacing: 0.1497x0.1462mm
15. Color Gamut: 68% NTSC
