1. Technical standards: compatible with WCDMA, FDD-LTE, TDD-LTE, 150Mbps DL
2. Frequency bands:
- LTE: B1/3/5/7/8/20/38/40/41
- WCDMA: B1/5/8
3. WiFi: 2.4GHz, 802.11 b/g/n/ax
4. Receive diversity: supported
5. MIMO: supports 2x2 MIMO for downlink
6. BB chipset: ASR 1803
7. Wi-Fi chipset: AIC8800DW
8. Wi-Fi users: 10
9. Power consumption: less than 10W
10. Power Voltage: DC 5V 800mA/DC 5V 1000mA
11. USIM/SIM: 4FF micro SIM card, supports SIM/USIM/UIM, standard 6-pin SIM card interface, supports 3V SIM cards and 1.8V SIM cards
12. LED display: system/WiFi indicator, LTE/internet status interface status indicator, Ethernet/signal strength indicator
13. Buttons: reset/WPS
14. Ethernet: 1 LAN, 10BaseT/100Base/auto-adaptive port
15. Operating temperature: -10 to +65 degrees Celsius
16. Storage temperature: -20 to +85 degrees Celsius
17. Humidity: 5% to 95%
Features:
1. Powerful chip, low-temperature operation, faster efficiency
2. Ultra-high-speed wireless transmission, easily connect multiple devices and enjoy a high-speed experience
3. MU-MIMO technology improves performance. When multiple network devices are connected at the same time, it can intelligently select the appropriate transmission channel for each client to meet the different entertainment needs of multiple users while ensuring a smooth gaming experience

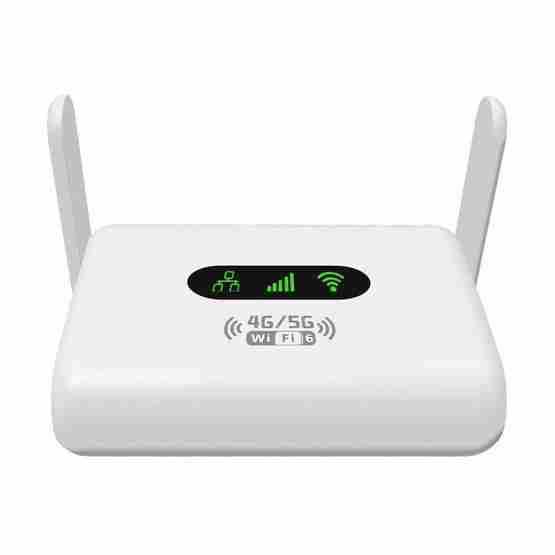

4. With 2 external antennas, it ensures excellent signal strength and coverage, faster speed, and less interference
