Original DJI E-Port V2 Development Kit For Matrice 400

Description

1. Used to convert the aircraft's E-Port V2 into multiple standard hardware interfaces and provides an onboard MCU, making it convenient for developers to connect hardware devices and debug SDK development
2. XT30 VCC output: 13.8V / 17.02V / 24V 5 A
3. XT30 12V output: 12V / 4 A
4. XT30 5V output: 5V / 4A
5. Compatible products: DJI Matrice 400
6. Development board size: 89mm long, 60mm wide, 13.4mm high

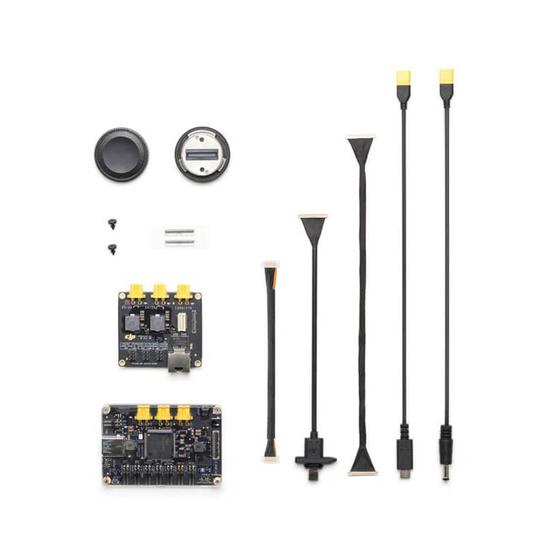

Package contents:
- DJI E-Port V2 development board x 1
- DJI E-Port V2 coaxial cable x 1
- XT30 to DC5.5 power cable x 1
- XT30 to USB-C power cable x 1
- Skyport V3 coaxial cable x 1
- Skyport V3 coaxial cable connector terminals x 2
- Skyport V3 adapter ring x 1
- X-Port adapter board x 1
- X-Port flexible cable x 1

Important notes:
1. If integrating the adapter board into a finished payload, ensure proper heat sink and metal housing design
2. If sparks, smoke, burning odor, or other abnormalities are detected after powering on the adapter board, immediately shut off the power
3. When using all three XT30 power output ports simultaneously, the total output power must be less than the maximum output power of a single port on the aircraft. Ensure payload development remains within the specified output limits
