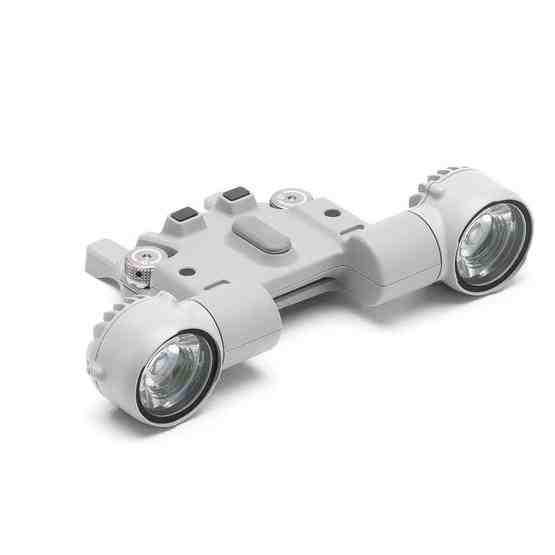

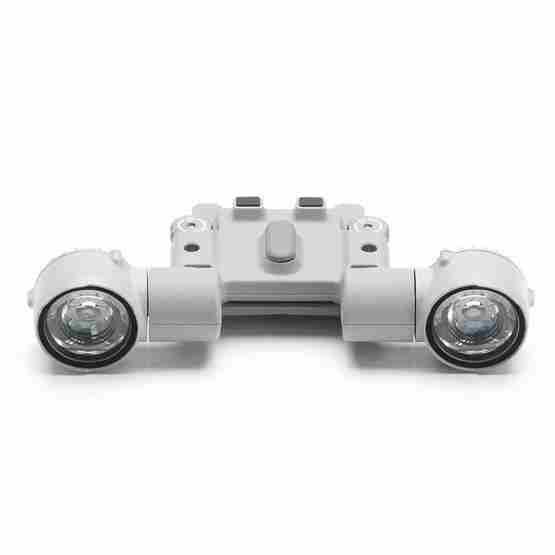

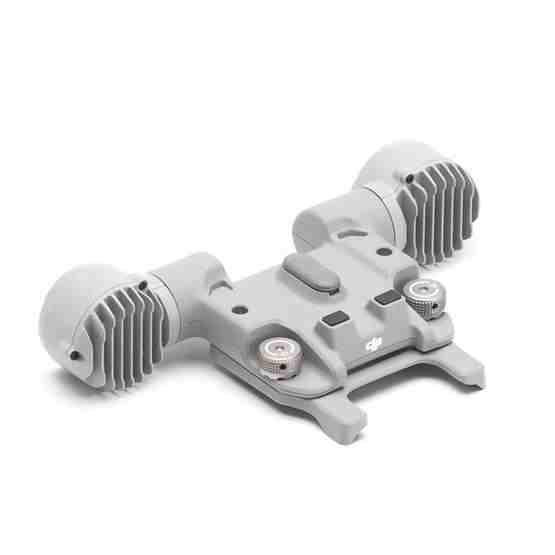

Original DJI AL1 Spotlight Supports Two Modes Always-On And Strobe Compatible With Matrice 4 Series Aircraft

Description

1. The DJI AL1 Spotlight supports two modes: always-on and strobe. It can clearly illuminate subjects even from a distance of 100 meters. (This effect is based on a distance of 100 meters from the subject and is for reference only.)
2. It can intelligently link with the gimbal, following the camera's movements to ensure the illuminated area matches the camera's view. It also offers a wide FOV lighting mode, which can light up a broader area when in wide-angle mode.
3. The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios.
4. Compatibility: Support for use with DJI Matrice 4 Series aircraft.

Technical parameters:
1. Weight: 99g (including bracket) / 91g (excluding bracket)
2. Size: 95×164×30 mm (L×W×H, including bracket）/ 79×164×28 mm (L×W×H, without bracket)
3. Maximum power: 32W
4. Illumination: 4.3+/-0.2 lux at 100m, 17+/-0.2 lux at 50m
5. Effective lighting angle: 23 degrees (10% relative illumination)
6. Effective lighting area: 1,300 square meters at 100 meters (10% relative illuminance, Normal Mode) / 2,200 square meters at 100 meters (10% relative illuminance, Wide fov Mode)
7. Working mode: Always-on and strobe
8. Gimbal mechanical range (tilt): -140- 50 degrees
9. Gimbal controllable range (tilt): -90- 35 degrees
10. Max controlspeed (tilt): 120 degrees/s
11. Gimbal alignment accuracy: +/-0.1 degrees
12. Working environment temperature: -20- 50 degrees Celsius
13. Installation method: quick-release hand-tightened screws

Warm Tips:
1. Tighten the screws to ensure secure installation. When installing on the aircraft for long-term use, use the included hex key to tighten the screws again after installation.
2. Activate the spotlight following the app prompts after installation. If a firmware update is available, please upgrade to the latest version promptly.
3. The performance of the Matrice 4 Series aircraft's propulsion and vision system will be affected after the spotlight is mounted. Fly with caution.
4. DO NOT point the spotlight directly at people’s eyes.
5. The spotlight may become hot after prolonged operation. Please be careful to avoid burns.

Packing list:
Spotlight × 1
Spare Screw × 2
Hex Key × 1
